Pinned vs. Dovetailed: Industrial Commutator Construction Types

If you work with DC machines for a living, you mey care about which construction survives your overload tests, which one your repair shop can refill at 3 AM on a Sunday, and which one stops eating brushes.

So let’s stay there. Pinned vs. dovetailed commutators, from a practical point of view.

1. Quick baseline: what we’re really comparing

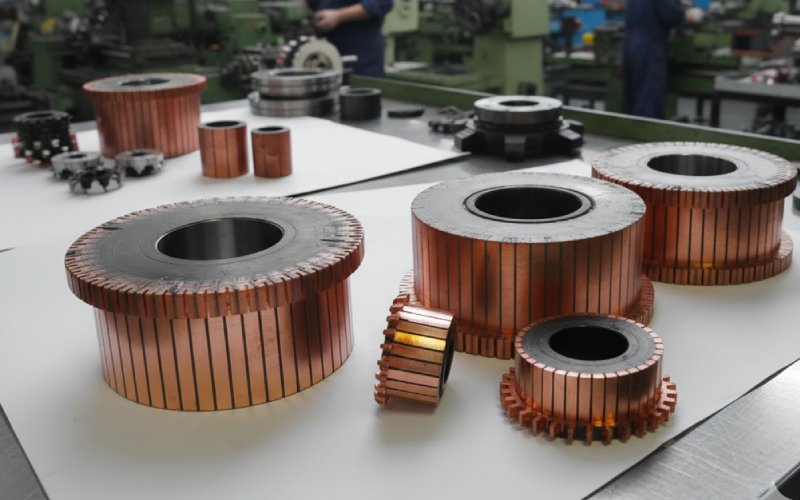

Most medium-to-large industrial commutators you see in traction, steel mills, mining, marine, etc. fall into a few families:

• Dovetailed / V-ring / arch-bound Copper and mica segments have dovetail roots that lock into steel V-rings or a steel core. Segments are clamped radially by wedge geometry plus clamping rings. These are usually refillable; you can remove and replace segments without scrapping the core.
• Pinned constructions Segments (or a segment pack) are secured by mechanical pins, bolts, or cross-pins through the root into the hub or support structure. Geometry at the root is simpler; the pin provides the mechanical lock instead of a full dovetail. Industrial usage is less standardized in the literature, but the idea is consistent: load path runs through pins, not a wedge-locked V-ring system.

The rest — glass-banded, external steel shrink-ring, molded commutators — are more about how the segment pack is restrained radially and axially than about “pinned vs. dovetail”, but they interact with that choice.

We’ll treat “pinned” and “dovetailed” as two answers to one question:

How do you stop the bar pack from moving when the rotor is hot, saturated, and spinning near overspeed?

2. What actually changes when you switch construction type

Before getting lost in cross-sections, it helps to pin down what this choice really touches:

• Maximum safe peripheral speed
• How the commutator behaves during thermal cycling
• Refill / rebuild complexity and cost
• Brush track stability over time
• Sensitivity to shock, vibration, and field service abuse
• How hard it is to standardize one design across many frame sizes

Everything else is second-order. Material, riser design, copper alloy, brush grade — all important, but you already specify those independently.

3. Dovetailed / V-ring / arch-bound commutators

3.1 Geometry in one short paragraph

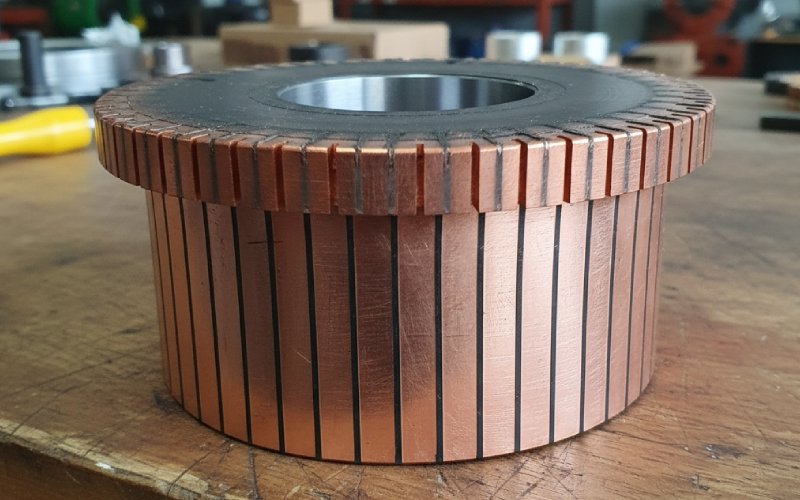

Classic industrial dovetail: each copper segment (with mica insulation) has a wedge-shaped foot that fits into a matching V in the steel V-ring or core. Insulating wedges and rings complete the pack. Clamping rings pull the V-rings together so the wedge faces lock the segments inward.

Arch-bound variants tweak that clamping geometry to pre-stress the bars inward (gap at V-ring clearance angle, then closed during assembly). This offsets centrifugal forces at speed.

3.2 Why heavy industry keeps using dovetails

Engineers keep specifying dovetailed or V-ring commutators in traction, hoists, and big DC drives for boring reasons:

• Mechanical security at high speed The radial load path is steel-to-steel across large wedge surfaces, with predictable stress distributions. That’s friendly to fatigue calculations and standards.
• Refillable by design Industrial practice and even general references explicitly describe “refillable dovetailed commutators” as the common choice for larger machines.
• Stable geometry under long-term seasoning Spin seasoning, heat seasoning, or load seasoning tends to “shake down” any micro-movement. Industry guides describe this as standard for high-performance commutators.
• Brush track consistency When the bar pack stays round and the mica stays where it belongs, you get fewer dark bars, less re-turning, and more predictable brush wear patterns. Maintenance documents on commutators lean heavily on stable bar geometry and V-ring integrity.

3.3 Typical pain points

Dovetailed designs aren’t magic:

• Tooling heavy for new designs (accurate wedge angles, machining of V-rings, precise boring).
• Refill isn’t trivial — you’re into specialized jigs, torque sequences, seasoning routines.
• Overkill for small frames — you can end up with a structure more complex than the motor deserves.

So for small-to-mid motors, or where the commutator is basically disposable, OEMs have drifted toward molded or simpler constructions.

4. Pinned commutator constructions

Here the goal is the same: keep the bar pack where it belongs. The tactic is different.

4.1 What “pinned” usually means in practice

Terminology varies by region and by repair shop, but pinned construction typically includes one or more of these:

• Bars or segment shoes inserted into a simpler groove, then radially pinned into the steel core or hub.
• A pre-assembled segment pack that’s cross-pinned to the shaft or hub (common in some clock, starter, and specialty motors).
• Pins acting as anti-creep features to prevent rotation of the bar pack relative to the hub in high-shock cases.

The load path is concentrated through pins with limited bearing area, instead of distributed wedge faces.

4.2 Why pinned constructions exist at all

If dovetails are so strong, why pin anything?

• Simpler machining You can avoid complex V-ring geometries. Straight slots plus drilling gives you enough accuracy for many mid-speed motors.
• Lower initial cost for some sizes Where volumes are modest and peripheral speeds are moderate, pinning can be cheaper than tooling up for full arch-bound geometry.
• Retrofit / conversion When converting old molded or riveted commutators to refillable steel-core builds, some repairers retain pins for indexing or locking features. Pins become part of a hybrid structure rather than the sole retention method.
• Extreme shock In equipment subject to short, violent shocks, a correctly specified pin can act as a mechanical fuse or secondary lock. It’s a niche argument, but it appears in some historic and specialized designs.

4.3 Typical weaknesses

Pinned systems trade off some of the advantages of dovetails:

• Stress concentration at the pins Under high peripheral speed, centrifugal force flows through a few small cross-sections, not broad wedge faces. Fatigue and fretting at the pin/hole interface become real concerns.
• Thermal mismatch issues Copper, steel, and insulation expand differently. Differential expansion around pins can loosen fit or distort the bar pack, especially after many heating cycles.
• Limited scalability Works fine on small or moderate-diameter commutators. Becomes progressively less comfortable as diameter and speed move into traction-motor territory.
• Refill complexity Removing and replacing pinned segments without damage to holes or pins can be slower than releasing a V-ring stack designed for repeat refills.

So pinned construction is often a cost / complexity optimization for specific ranges of speed, diameter, and duty, rather than a general answer for all industrial DC machines.

5. Pinned vs. Dovetailed: side-by-side

Here’s the quick comparison engineers actually use when making a spec or reviewing a repair proposal.

6. How construction type shows up in your maintenance data

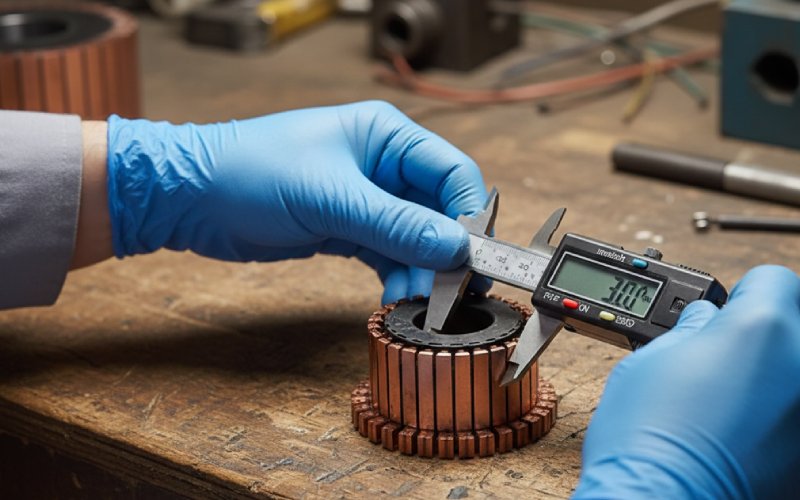

If the tag is worn off and the drawings are buried, you can still infer a lot from how the commutator behaves in service.

6.1 Patterns that point to dovetailed / V-ring

From traction and heavy-industry documentation, you usually see:

• Consistent bar-to-bar height after correct seasoning.
• Stable runout until something external happens (bearing failure, shaft bend).
• Clear refill history in records: segment packs replaced, V-rings re-torqued, seasoning cycles logged.
• Brush problems mostly tied to contamination, wrong grade, or alignment — not bar movement.

6.2 Patterns that suggest pinned or simpler construction

In contrast, pinned or simplified builds often show:

• More frequent touch-up cuts on the commutator to correct minor runout.
• Notes about “bar creep” or local distortion in thermal cycling.
• Repairs mentioning drilled pins, broken pins, or re-pinning operations.
• A stronger tendency for the plant to treat the entire rotor or motor as non-refillable even if, in theory, it could be.

That isn’t a rulebook, just a pattern you can cross-check against your own CMMS history.

7. Choosing construction for a new design or retrofit

Assuming the electrical side is already frozen, here’s a direct decision path.

7.1 Start with speed and diameter

• High peripheral speed (traction, large mill drives, marine propulsion, high-speed DC): Go dovetailed / V-ring / arch-bound by default. You’re inside the envelope that standards, handbooks, and decades of data already cover.
• Moderate speed, moderate size (general industrial DC, cranes, pumps): Dovetailed still works and simplifies long-term support. Pinned can be justified if you have strong cost pressure and a tight, well-documented duty cycle.
• Small diameter, low duty (appliances, small tools, “throw-away” DC drives): Realistically this is molded commutator territory; both pinned and dovetail are often too expensive. Molded units are now common even in somewhat larger motors.

7.2 Then look at your service model

Ask three unromantic questions:

1. Is the commutator intended to be refillable?
   • Yes → strongly favors dovetailed or V-ring, because refill practices, jigs, and know-how are widely available.
   • No → pinned or molded become more interesting, because initial build cost dominates.
2. Where will it be repaired?
   • If your repair partners already have V-ring / arch-bound jigs and seasoning rigs, lean into that ecosystem.
   • If they mostly handle small, simple builds and don’t refill commutators at all, pinned or molded can align better with reality.
3. How long is the expected service life?
   • 10–15 years, with planned overhauls → design for refills.
   • Shorter or uncertain → you can accept structures that are mechanically conservative but non-refillable.

7.3 Standardization vs. one-off optimization

Big fleets benefit from standardization. It’s rarely worth mixing pinned and dovetailed constructions inside one power range unless something about your environment (shock, contamination, regulatory requirement) really demands it.

8. Practical design hints for each construction type

8.1 For dovetailed / V-ring / arch-bound

• Treat wedge angles and surface finish as critical, not cosmetic. Minor deviations change contact pressure distribution.
• Specify seasoning procedure in the drawing notes (speed, duration, temperature). Don’t leave it to memory or habit.
• Lock down V-ring material and hardness; cheap substitutions can creep under load and heat.
• Make it easy to measure clamping ring torque or stretch during rebuilds, so service shops can reproduce the original prestress.

8.2 For pinned constructions

• Run actual stress and fatigue estimates on the pins, not just simple static checks.
• Control hole quality and alignment tightly. Ovality and misalignment show up later as distortion.
• Specify pin material and surface treatment for corrosion. A rusty pin in a blind hole can ruin a future rebuild.
• If possible, combine pins with a secondary geometric lock (step, shallow groove) so the pins don’t see the full torque alone.
